Absolute Maximum Ratings (Ta = 25oC)
Item
Symbol
Rated value
Unit
Power supply voltage Vcc 10 V
Output voltage VOUT 28 V
Output current IOUT 16 mA
Permissible output dissipation POUT 250＊ mW
Operating temperature Topr -25 to +75 oC
Storage temperature Tstg -40 to +85 oC
Soldering temperature Tsol --- oC
＊ Refer to the temperature rating chart if the ambient temperature exceeds 25°C.


Electrical and Optical Characteristics (Ta = 25oC)
Item
Symbol
Value
Unit
Condition
MIN.
TYP.
MAX.
Current consumption ICC --- --- 30 mA With and without incident
Low-level output voltage VOL --- --- 0.3 V IOUT = 16 mA
with incident
High-level output voltage VOH (VCC×0.9) --- --- V VOUT = VCC
without incident,
RL = 47 kΩ
Response frequency f 3 --- --- kHz

VOUT = VCC＊,
RL = 47 kΩ

＊The value of the response frequency is measured by rotating the disk as shown below.



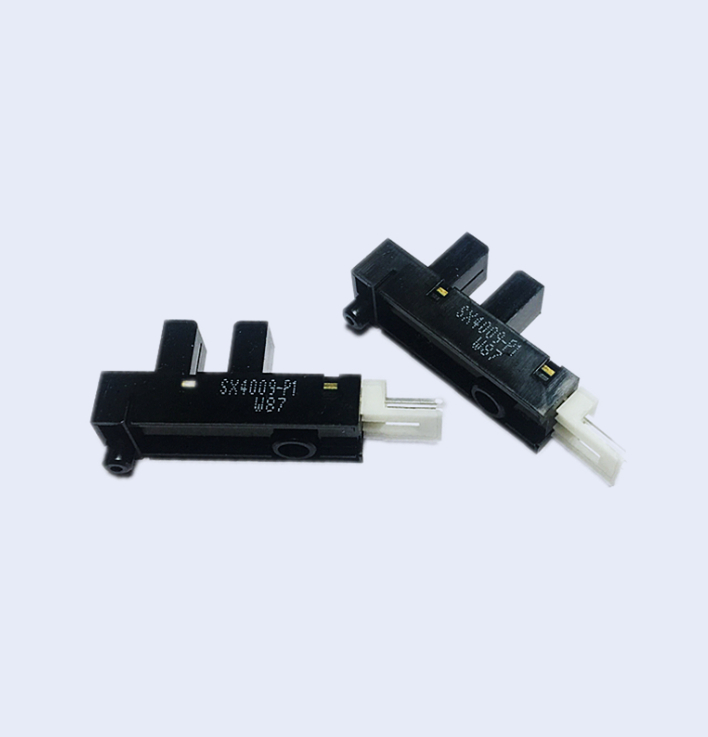

Exterior Specifications

Connecting method Weight (g) Material
Case
Connector 3.4 Polycarbonate
